Dual-Shot Injection Molding | Two-Shot & 2K Molding Services

What is Dual-Shot Injection Molding?

  • Fundamentally, dual-shot injection molding is a multi-shot injection molding that is process where two distinct thermoplastics or colors are injected in a single mold during one shot. In contrast to the conventional over-molding procedure in which a single material is molded over another substance in multiple stages, in the dual-shot molding process, both stages are combined in one machine.
  • The outcome is a multi-material plastic part that provides greater strength, better appearance, or additional functions like soft-touch plastic parts or dual-color injection molding. The method is driven by specialty two-material molding and enhanced two-shot mold design, enabling management of the flow of the material, bonding, and cooling with high accuracy.

Dual-Shot Injection Molding: Technology, Applications, and Benefits

  • In the contemporary plastics business, production is not about making simple shapes. The current markets require products that are durable, light, functional, and pleasing to the eye. One of the latest technologies that satisfies these demands is dual-shot injection molding, or two-shot injection molding, double-shot injection molding, or 2K injection molding.
  • This new process enables the manufacturers to create a single, finely-engineered component by infusing two materials or colors in a single product, and the possibilities of product design and performance are limitless.
  • Since the automotive plastic components to either medical device injection molding or consumer electronics molding, dual-shot molding has changed the industries with its efficiency and its ability to change.

Workings: Dual-Shot Injection Molding

Technical process understanding brings to the fore the reasons why this technique is regarded as a sophisticated injection molding technique.

Base Material Injection-First Shot

  • The substrate or structural base is created by injecting the first thermoplastic (usually a rigid plastic like ABS or PC) into a mold cavity designed to shape the substrate or structural base.

Mold Rotation or Transfer

  • The mold or core is moved, rotated, or transferred in the machine, leaving the base part exposed to the second cavity.

Second Shot-Another Material Overmolding

  • The second material (usually a soft elastomer such as TPE or another color plastic) is injected over the substrate. The step forms a two-component plastic engineering and a chemical or mechanical bond.

Cooling and Ejection

  • The completed component is ejected as a multi-layer plastic component and cooled, which can be used in its final form without secondary assembly.

The process is integrated such that it does not require glue, fasteners, or other finishing processes and is an ideal solution in terms of accuracy in plastic parts.

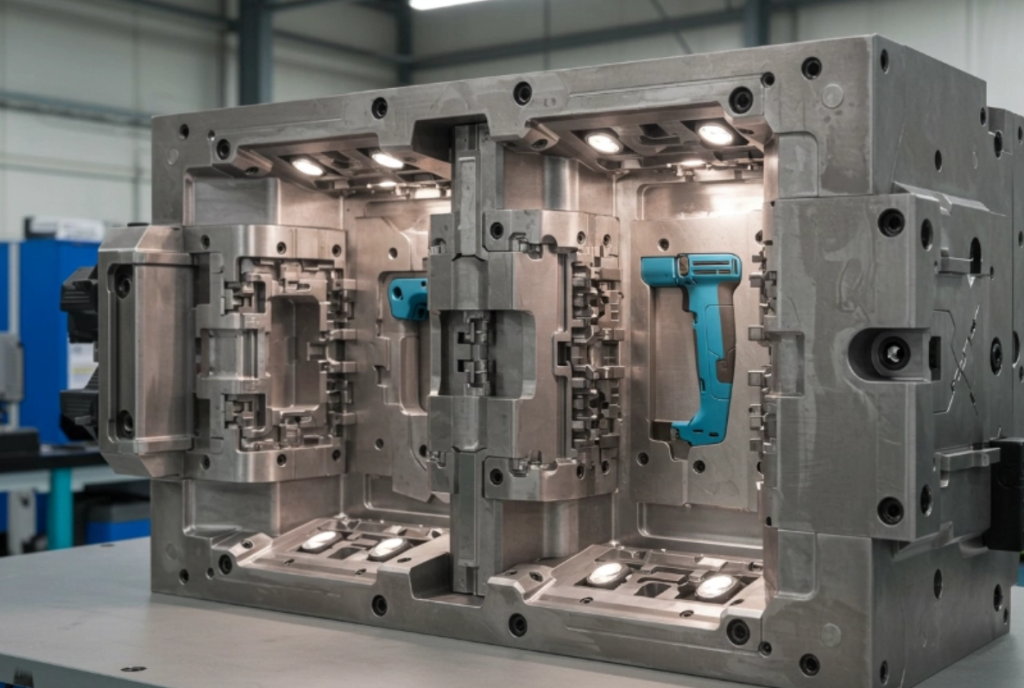

dual-shot injection molding

Dual-Shot Injection Molding Technical Highlights

Dual-shot injection molding is the combination of sophisticated engineering and highly accurate machinery. Some technical knowledge is provided below:

  • Multi-Shot Mold Tooling: This also needs the use of complex hot-runner two-shot molding systems that maintain controlled two-material flow.
  • Material Compatibility: Generally includes such combinations as PC/TPE, ABS/TPU, or PP/TPR in terms of bonding flexibility.
  • Bonding Techniques: May depend on mechanical interlocks or chemical adhesion, or both.
  • High-Precision Molding: attains tolerances of less than +-0.01 mm, and is therefore suitable in medical device plastic molding.
  • Thermoplastic Elastomers (TPE) Overmolding: These are popular in grips, seals, and gaskets because of their flexibility and durability.
  • Complex Geometry Plastic Molding: Allows making complex parts in multiple functional layers.

Injection Molding vs Dual-Shot Injection Molding

Dual-shot molding should be distinguished from other similar processes:

  • Over molding vs Two-Shot Molding: The over molding process is carried out over several cycles, and the two-shot process is carried out in a single cycle.
  • Insert Molding vs Two-Shot Molding: In insert molding, existing components (such as metal inserts) are inserted into plastic; in dual-shot molding, two plastics are fused.
  • Co-Injection Molding: Involves the use of multiple materials, but they are injected into a single cavity at the same time, in contrast to sequential dual-shot processes.

Dual-Shot Injection Molding Uses

The field of this technology is wide-ranging, and it is expanding in industries:

Car Plastic Parts
  • Dual-color injection molding is frequently used to provide the visibility and durability of dashboard buttons, knobs, and handles.
  • Cases and hard two-material components enhance the stability of the vehicle.
Injection Molding Medical Devices
  • Accurate injection-molded surgical equipment.
  • Syringe and diagnostic device grips made of soft touch.
  • Airtight, sterile, and safe plastic containers.
Consumer Electronics Molding
  • Buttons and keypads in multiple colors (phones and remote controls).
  • Water-resistant integrated seals in consumer electronics casing.
  • Hard and soft plastic housings of wearable devices.

Benefits of Dual-Shot Injection Molding

The advantages of using such a method are great:

  • Improved Design of its products: It can be multi-colored and ergonomically finished.
  • Economical Production: Minimizes the manufacturing stages, manpower, and material wastage.
  • Higher Bonding Strength: The plastics are bonded chemically, which makes them durable.
  • Stable Quality: Precision molding removes the defects in hand assembly.
  • Lightweight: Durable plastics: best suited for industries that want to achieve strength without an increase in weight.
  • Creative Molding Solutions: Enables has features such as inbuilt seals and plastic bonding solutions.

Why SunOn Mold is Selected for Dual-Shot Injection Molding?

We carry out multi-component molding, dual-shot molding services, and custom two-shot plastic molding at SunOn Mold. Having decades of experience in designing two-shot molds and dual-material injection processes, we can provide solutions that satisfy industry standards in terms of quality and innovativeness. Regardless of whether you require precision plastic parts, automotive plastic components, or medical device plastic molding, our team can make sure:

  • State-of-the-art dual material molding machines.
  • Knowledge of intricate geometry in plastic injection molding.
  • Quality cost-efficient production.

Let us introduce you to our injection molding solutions so that we can make your products a reality.

Conclusion

Dual-shot injection molding is not simply a manufacturing process- it is a revolution in the manufacture of plastic parts. It removes the need to assemble two materials or colors into one component, resulting in increased design flexibility, increased product durability, and the elimination of the need to assemble two materials or colors in one component. When it comes to molding, you can count on them, just like we have done with partner companies such as SunOn Mold, so that your projects are handled with accuracy, professionalism, and the willingness to perform.
