Production Injection Molding Service for Multi-Cavity Mass Production Efficiency

Production Injection Molding Service allows manufacturers to cast high-volume orders to exact, dependable specifications consistently, without time delays or quality issues. When your project demands thousands or millions of identical components, multi-cavity molds offer a practical path to faster cycle times and lower per-unit costs. SunOn combines precision tooling, broad material selection, and streamlined post-processing to support exactly this type of efficient production.

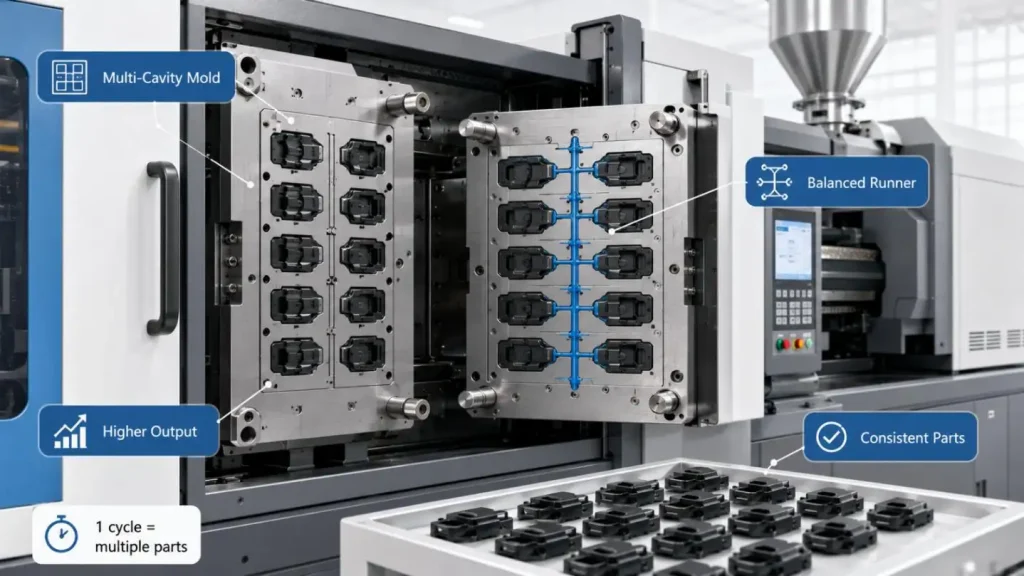

Why Multi-Cavity Molds Define Efficient Production Injection Molding Service

A well-designed multi-cavity mold produces multiple identical parts in one machine cycle. This approach directly improves output while maintaining the same clamping force and injection pressure as a single-cavity setup. For buyers and engineers reviewing production quotes, the logic is clear: more cavities per mold mean more parts per hour, which reduces both energy use and labor per part.

There are a number of efficiencies that multi-cavity tooling brings.

•Lower cost per part: By using 4, 8, 16, or 32 cavity tooling, you can decrease cost per part by using the same cycle time that you would for tooling with a single cavity.

•Quality: A balanced runner and venting set up ensures that even the last cavity to cool has the same fill and cool conditions as the first cavity.

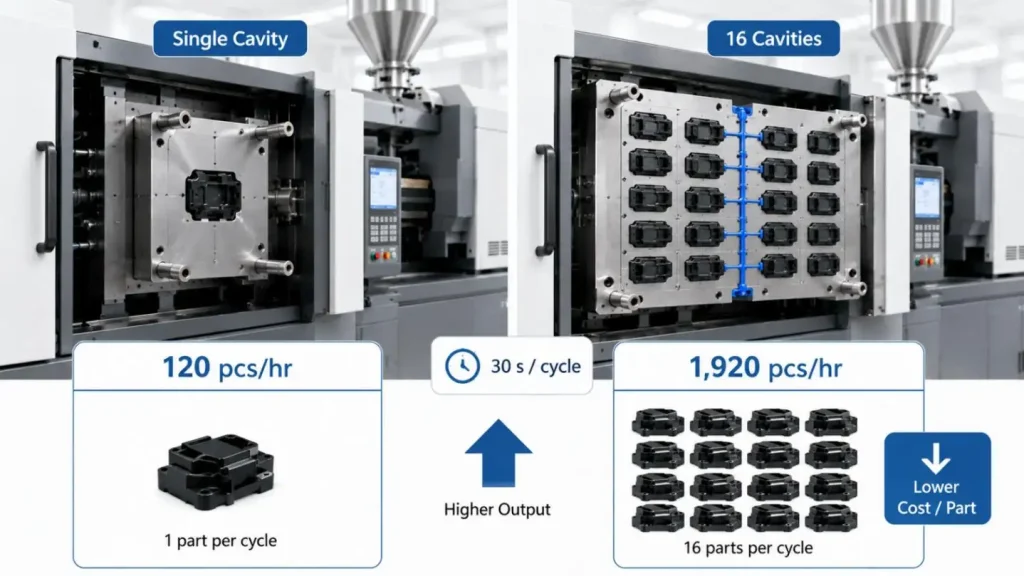

•Increased output per cycle: When a 16 cavity mold with a cycle time of 30 seconds yields 1,920 parts in an hour compared to a single cavity mold that yields 120 parts.

•Less handling: Increased cavity counts mean fewer machine cycles to reach the desired quantity. This allows the press to be used for other projects.

SunOn engineers each multi-cavity mold with flow simulation and thermal analysis, so every cavity receives the same melt temperature, packing pressure, and cooling rate. This attention to balance prevents short shots, flash, or dimensional variation across cavities.

Key Features of SunOn's Production Injection Molding Service For High-Volume Orders

Our production injection molding service is built around flexibility and repeatability. We do not push a one-size-fits-all solution; instead, we configure mold design, material, and cycle parameters to match your part geometry and annual volume.

What SunOn delivers for multi-cavity mass production:

•High-cavity and multi-cavity molds: From 2 cavities for large automotive panels to 64+ cavities for small consumer goods or medical disposables.

•Tight tolerances ±0.1 mm: The high cavity counts we achieve do not compromise consistency from one part to the next.

•Quick lead times (7-30 days): Anticipate production occurs in matter of weeks rather than months.

•Production amounts 1,000 to 1 million+ parts: Scalable capacity with no limits per order.

•Broad selection of thermoplastic materials: Thermoplastics from the range of Abs, PC, Nylon, POM, PP, PE, PC/Abs, etc. with consideration for Stiffness, chemical resistance, and impact resistance.

How Multi-Cavity Tooling Supports 2026 Production Demands

Buyers today look for shorter validation cycles, transparent lead times, and finishes that reduce post-molding work. Multi-cavity molds, when paired with modern injection machines, meet these expectations directly.

Trends that make multi-cavity production injection molding service increasingly relevant:

•Faster time-to-market: One optimized multi-cavity tool replaces multiple single-cavity tools, reducing mold fabrication and sampling time.

•Surface finishes that ship as final: Glossy, matte, texture, UV coating, and plating are applied in-house, so parts exit the press ready for assembly.

•Overmolding and insert molding: Combine rigid and soft materials or metal inserts in a single multi-cavity cycle, eliminating secondary assembly steps.

•Sustainable material use: Reduced scrap per part because balanced filling minimizes runners and rejects.

For example, a consumer electronics housing requiring 500,000 units per year can run on an 8-cavity mold with a 35-second cycle. At SunOn, that same tool design also supports engineering changes through rapid tooling adjustments, not full mold replacement.

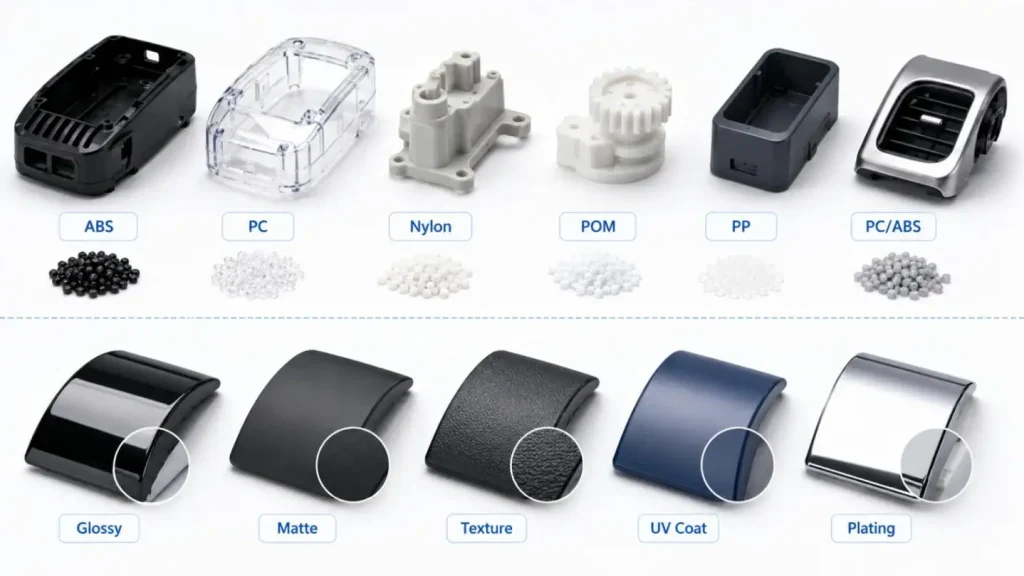

Materials and Finishes That Enhance Multi-Cavity Efficiency

Material choice directly affects cycle time, part strength, and surface quality. SunOn maintains a broad inventory of thermoplastics suitable for high-cavity production, each with well-documented processing windows.

Common Materials in Injection Molding

•ABS: A great choice for automotive parts and tough housings because of excellent flow and toughness.

•PC: Offers clear and high-impact medical device lens and housing solutions.

•Nylon: Very tough, and abrasion resistant. Good for gears and brackets.

•POM: Low friction, and creates good movement.

•PP: Low weight, and high chemical and fatigue resistance makes this great for living hinges and containers.

•PC/ABS: Good processing and high impact resistance makes this ideal for large panels.

In-House Surface Finishes

•Polished Cavity: Provides a glossy finish.

•Bead Blasted Cavities: Provide a matte finish.

•Fine Texture: Provides a uniform grain pattern which reduces the visibility of handling marks.

•UV Coating: Provides a protective finish to reduce yellowing and scratches.

•Plating: Provides a chrome or nickel finish.

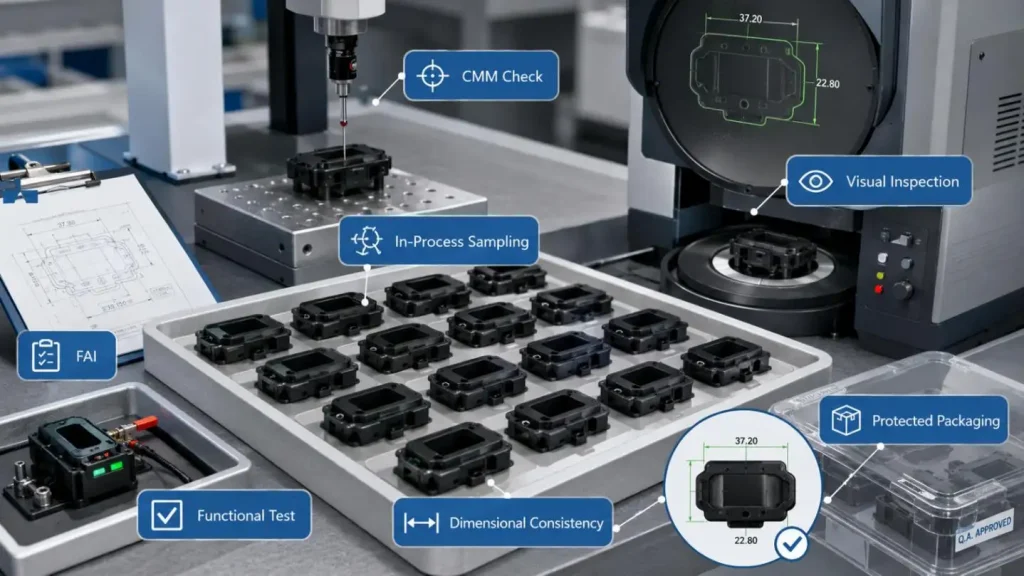

Assured Quality of Every Cavity

Multi-cavity production provides a value in that, from each cavity, we can produce identical parts with no defects. We have built in layered quality checks throughout the entire process.

For multi-cavity quality runs, we offer you:

•First Article Inspection: The first part produced for each cavity is inspected. A CMM or an Optical Comparator compares the part with the CAD.

•In Process Sampling: to confirm the stability of the process, parts from each cavity are collected every 2 to 4 hours.

•Visual Inspection: Surface defects are enlarged and highlighted.

•Functional Tests: Drawing based Snap-fit, seal integrity tests and electrical tests will be conducted.

•Packaging Verification: All materials considered fragile will be placed in barrier bags or anti-static trays.

Process and documentation are consistently enhanced to meet the requirements of ISO 9001, IATF 16949 (automotive), and ISO 14001 (environmental management).

Why Choose SunOn for Your Production Injection Molding Needs

SunOn has been a trusted partner for custom manufacturing for 25 years from prototyping to mass production. With presence in 27 countries and a dedicated team of engineers, we support your production.

Why Choose SunOn For Multi-Cavity Mass Production?

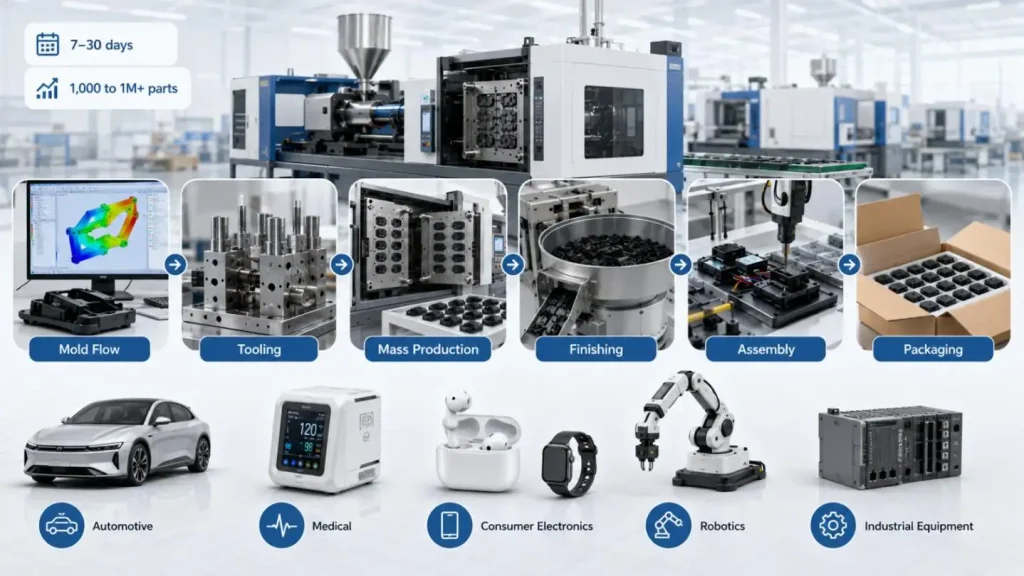

•SunOn offers the design and Mold Flow analysis, and all services for assembly and packaging of the final product. We integrate machining and fabrication of sheets for hybrid products.

•Expertise: Our engineers make recommendations for gate positioning, draft angle calculations, and ejection methods, to optimize the use of all the cavities.

•Flexibility: Instead of waiting to bring in production steel for the process, we can use aluminum and pre-hardened steel as options for the tools while doing trial runs.

•Industries served: Automotive, medical devices, consumer electronics, robotics, LED lighting, and industrial equipment.

When you need a production injection molding service that handles high cavity counts without compromising quality or lead times, SunOn provides the technical foundation and operational scale to deliver.

Ready to discuss your multi-cavity project?

[Request a Quote] – [Download Material Selection Table] – [Ask for Engineering Review]

By focusing on balanced mold design, repeatable processes, and in-house finishing, SunOn helps you achieve efficient mass production—one cycle, one cavity, one reliable part at a time.

FAQs

Q1: What's your average turn-around for multi-cavity molds?

A: 7 - 30 days based on, the cavity count, and part complexity.

Q2: What thermoplastics can you high cavity mold?

A: ABS, PC, Nylon, POM, AL, PC/ABS

Q3: What is standard output for multi-cavity injection molding?

A: An expected output can be around 1,000 with no maximum.

Q4: Can multi-cavity molding use several materials?

A: It can in the same cycle via over molding or insert molding.

Q5: What options and finishes are available?

A: We offer different finishes such as gloss, matte, and textured, as well as choices for UV Coating and Plating.
