Electric Vehicle Die Casting: Parts, DFM & RFQ Guide

Electric vehicle die casting produces custom metal components for battery systems, electric motors, inverters, onboard chargers, thermal-management systems, body structures, and supporting vehicle assemblies.

These parts often combine lightweight construction with structural, thermal, sealing, dimensional, electrical-grounding, and environmental requirements. As a result, an EV casting cannot be evaluated only by its shape, weight, or quoted unit price.

The alloy, wall structure, metal flow, thermal balance, porosity-sensitive areas, machining datums, sealing interfaces, coating, inspection plan, automotive documentation, and lifetime production volume must be developed as one manufacturing system.

SunOn supports custom aluminum die casting parts from part DFM and mold engineering through trial casting, CNC machining, finishing, inspection, and repeat production.

Electric Vehicle Die Casting at a Glance

EV Project Requirement	Typical Engineering Direction
Battery or power-electronics housing	Review sealing, flatness, cooling, grounding, and corrosion
E-motor housing	Control bearing bores, concentricity, cooling jackets, and noise-related interfaces
Inverter or onboard charger enclosure	Review thermal paths, connector locations, shielding, and sealing
Structural bracket or cross member	Prioritize load paths, ductility, fatigue, joining, and crash requirements
Large integrated casting	Confirm alloy, machine capacity, vacuum, distortion, repair, and inspection
Pressure-tight fluid component	Define porosity-sensitive zones and leak-test requirements
High-voltage enclosure	Coordinate metal housing, insulation, seals, bonding, and assembly
Tight machined interface	Add machining stock and stable casting datums
Automotive repeat production	Define APQP, PPAP, control plans, traceability, and change control
Early development program	Compare CNC prototypes, low-volume casting, and production tooling

What Is Electric Vehicle Die Casting?

Electric vehicle die casting is the high-pressure production of aluminum, magnesium, zinc, or other suitable alloy components used in an electrified vehicle system.

Aluminum high-pressure die casting is commonly considered because it can combine:

Low component mass
Complex integrated geometry
Heat-transfer capability
Structural ribs and bosses
Electrical conductivity
Corrosion-management options
Repeat production
Secondary machining
Recyclable metal content

However, not every EV component should be die cast. Extrusion, stamped sheet, welded assemblies, gravity casting, low-pressure casting, forging, CNC machining, plastics, and composites may be more suitable for some designs.

The correct process depends on part size, quantity, load, sealing, thermal requirements, joining method, tooling investment, and validation plan.

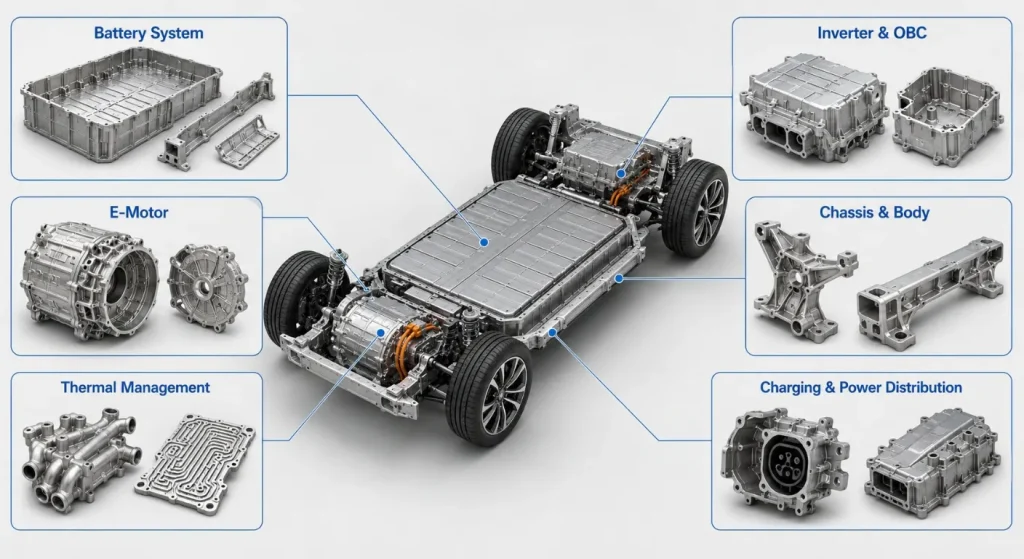

Common EV Die Cast Components

Battery System Components

Possible die cast battery-system parts include:

Battery module housings
Battery-pack end structures
Tray sections
Corner castings
Cross members
Cooling-system manifolds
Connector housings
Service-disconnect housings
Mounting brackets
Protective covers

The complete battery enclosure may be a single casting, a cast-and-extruded assembly, or a stamped and welded structure. Each route creates different tooling, joining, sealing, repair, flatness, and production requirements.

Electric Motor Housings

An e-motor housing may need to control:

Stator location
Bearing-bore alignment
Shaft-related concentricity
Cooling-jacket geometry
Mounting interfaces
Noise and vibration behavior
Cable and connector positions
Sealing surfaces

Many critical motor-housing features require CNC machining after casting.

Inverter and Power-Electronics Housings

Inverters, converters, onboard chargers, and power-distribution assemblies may use cast aluminum housings for:

Electronic protection
Heat transfer
Cooling channels
Connector mounting
Electrical grounding
Electromagnetic shielding
Environmental sealing
Structural support

The casting should be designed together with the PCB, thermal-interface material, gasket, connector, fastener, and cooling system.

Structural and Chassis Components

Structural die cast parts may include:

Front and rear body structures
Shock-tower sections
Cross members
Suspension-related brackets
Battery-pack mounting structures
Seat or body supports
E-drive mounting brackets

Large integrated castings can reduce part count and joining operations, but they also increase tooling, machine, distortion, repair, material, and inspection demands. A large single casting is not automatically more economical than a multi-part assembly.

Selecting an Alloy for EV Die Cast Parts

The RFQ should identify the exact alloy and applicable specification rather than stating only “automotive aluminum.”

General-Purpose Aluminum Die Casting Alloys

A380-type and ADC12-type alloys may suit general housings, covers, brackets, and non-structural components where their castability and production characteristics match the application.

They should not automatically be used for:

Crash-relevant structures
Welded structural assemblies
High-ductility components
Parts requiring specific heat treatment
High-integrity pressure applications

Corrosion- and Pressure-Oriented Alloys

A360-type or A413-type materials may be reviewed where the project requires a different balance of corrosion behavior, fluidity, mechanical properties, or pressure-tight performance.

The final result still depends on mold design, vacuum level, air management, casting conditions, wall transitions, and sealing geometry.

Structural Die Casting Alloys

Large structural EV castings may require low-iron, high-ductility, heat-treatable, or self-aging aluminum alloys.

Alloy selection should reflect:

Yield and tensile requirements
Elongation
Fatigue
Crash behavior
Joining
Heat treatment
Distortion
Corrosion
Recycled content
Repair strategy

The alloy supplier, temper condition, test locations, and acceptance criteria should be defined before tooling approval.

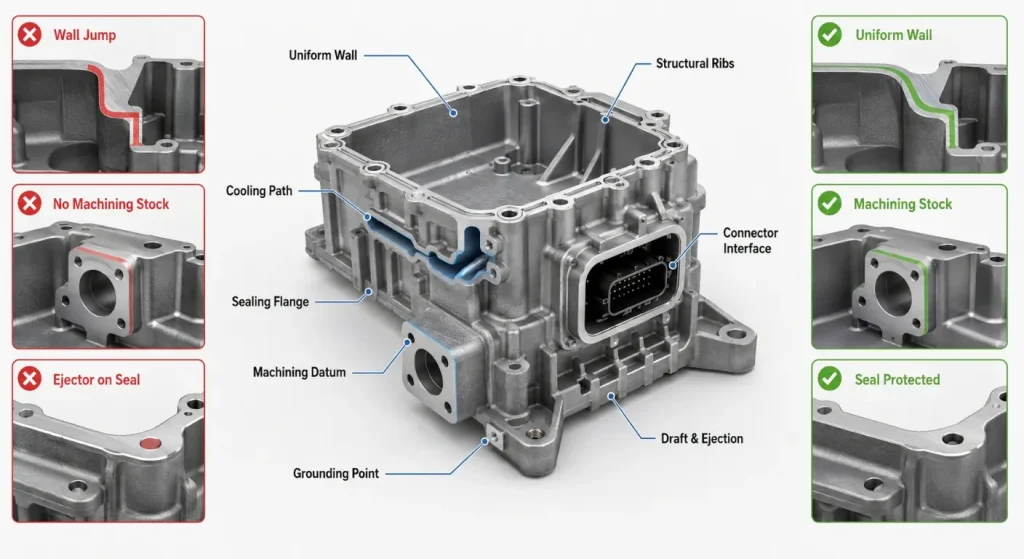

Design EV Components for Die Casting

Build Clear Load and Thermal Paths

Ribs and walls should transfer mechanical and thermal loads through the component without creating unnecessary heavy sections.

Designers should coordinate:

Structural ribs
Cooling fins
Sealing flanges
Fastener bosses
Bearing supports
Connector areas
Grounding points
Crash and mounting interfaces

Maintain Controlled Wall Transitions

Abrupt changes between thin and thick sections can affect filling, solidification, shrinkage, porosity, distortion, and surface quality.

Preferred directions include:

Relatively consistent walls
Gradual transitions
Cored heavy areas
Ribs instead of solid mass
Local reinforcement only where needed

There is no universal minimum wall thickness for every EV casting. Part size, flow length, alloy, gate location, structural demand, machine capacity, and inspection criteria must be reviewed together.

Plan Draft, Fillets, and Ejection

Draft supports release from the steel die. Fillets improve metal flow and avoid fragile mold edges.

Ejector locations should avoid:

Sealing surfaces
Thermal interfaces
Visible cosmetic areas
Thin unsupported walls
Critical machined datums
High-voltage insulation interfaces

Define Machining Allowance Early

Critical EV features commonly machined after casting include:

Bearing bores
Motor-mounting faces
Sealing flanges
O-ring grooves
Connector holes
Threaded holes
Cooling-channel ports
Grounding pads
Datum surfaces

The casting model should include enough material for machining while avoiding excessive stock that increases cycle time, distortion risk, and porosity exposure.

Battery Housing and Sealing Requirements

Battery and high-voltage housings must be developed as complete assemblies rather than isolated metal castings.

The project may need to coordinate:

Housing stiffness
Cover flange flatness
Gasket compression
Fastener spacing
Sealant path
Venting devices
Pressure equalization
Water and dust protection
Crash loads
Grounding and bonding
Electrical isolation
Thermal expansion
Corrosion between dissimilar materials

UNECE electric-vehicle safety regulations and ISO battery-system standards address vehicle and rechargeable-energy-storage-system safety, but the applicable requirements depend on vehicle market, voltage class, battery architecture, and customer specification. A casting supplier should not claim vehicle-level compliance based only on the metal housing.

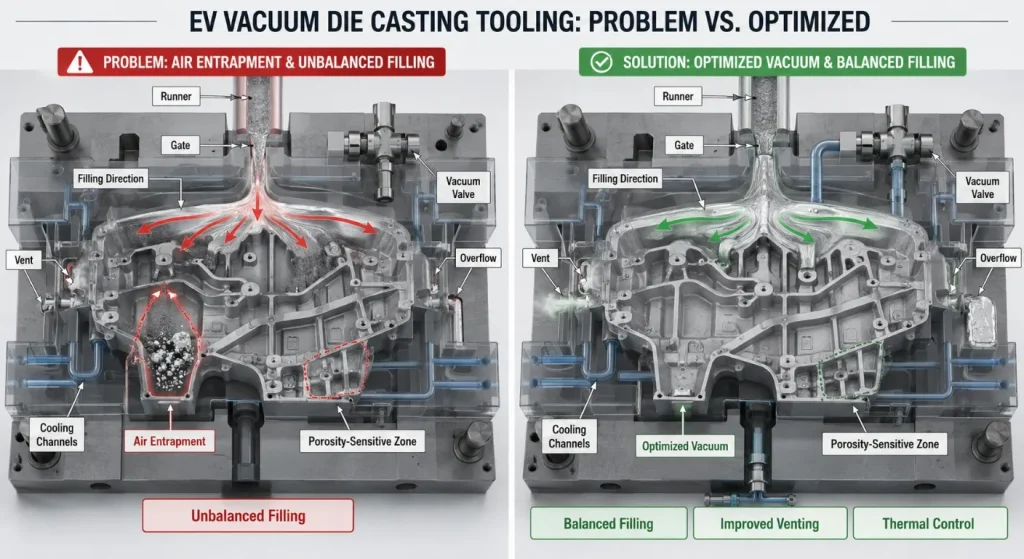

Tooling, Vacuum, and Air Management

EV housings and structural components often contain broad walls, deep ribs, long flow paths, cooling features, and pressure-sensitive regions.

The tooling system may include:

Balanced runners and gates
Overflows and vents
Vacuum connections
Slides and core pulls
Replaceable core pins
Local cooling circuits
Thermal-control inserts
Ejector systems
Sensors and monitoring points

Vacuum-assisted high-pressure die casting may reduce trapped gas and support higher-integrity castings, welding, heat treatment, or sealing requirements. It does not guarantee zero porosity.

Vacuum performance depends on:

Mold sealing
Valve timing
Shot profile
Gate design
Die lubricant
Melt quality
Vent and overflow layout
Process maintenance

For wider tooling guidance, review SunOn’s die casting mold design guide.

Secondary CNC Machining

Die casting creates near-net-shape geometry, while CNC machining completes selected functional interfaces.

Typical EV machining operations include:

Bearing-bore machining
Sealing-face milling
O-ring groove machining
Cooling-port drilling
Thread tapping
Connector positioning
Datum-face finishing
Flatness correction
Insert preparation

The machining plan should identify:

As-cast datums
Final machining datums
Setup sequence
Fixture support
Porosity-sensitive cuts
Burr-control areas
Cleanliness requirements
Inspection after machining

CNC machining cannot reliably correct insufficient casting stock, major distortion, unstable datums, or porosity located in a sealing surface.

Surface Treatment and Corrosion Control

EV die cast parts may receive:

Shot blasting
Conversion coating
Powder coating
Wet painting
E-coating where applicable
Plating
Local masking
Laser marking
Sealing or impregnation where approved

The finish should be selected according to:

Road salt and moisture
Dissimilar-metal contact
Grounding requirements
Thermal interfaces
Coating thickness
Fastener fits
Gasket surfaces
Electrical isolation
Appearance
Service temperature

For environmental design considerations, review SunOn’s corrosion-resistant aluminum die casting guide.

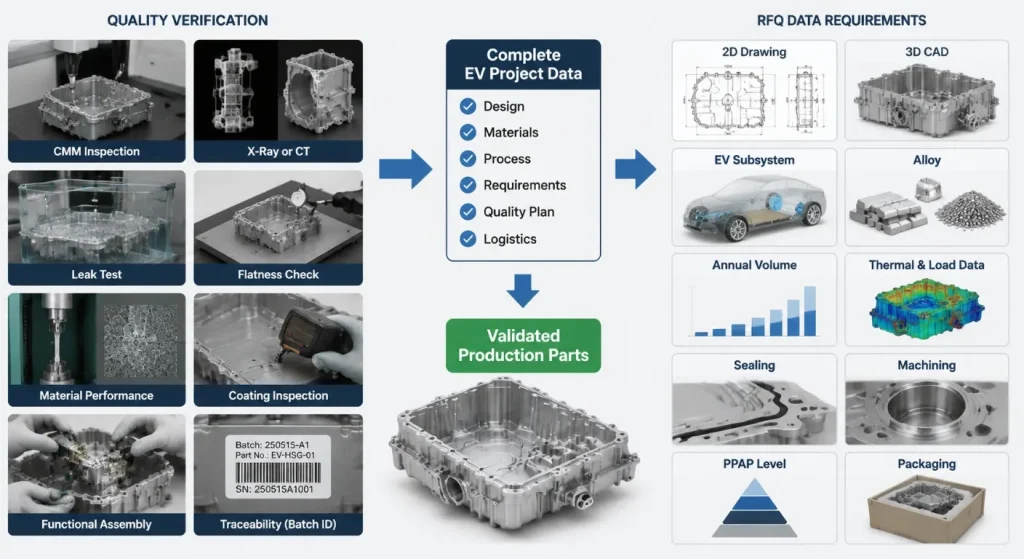

EV Die Casting Quality Control

Automotive approval should verify the complete production process, not only a small group of initial samples.

Possible controls include:

Alloy-composition verification
Material traceability
First-article inspection
CMM and gauge inspection
X-ray or CT for defined regions
Leak or pressure testing
Flatness measurement
Mechanical-property testing
Coating-thickness and adhesion checks
Cleanliness inspection
Functional assembly
Process capability studies
Serial or batch traceability

AIAG identifies PPAP as the automotive process used to demonstrate that design-record and specification requirements can be achieved by the supplier’s production process. Its CQI-27 Casting System Assessment also addresses process requirements for automotive foundry suppliers.

Depending on the customer, the project may require:

APQP
Design and process FMEA
Control plan
Measurement-system analysis
Capability studies
Material records
IMDS submission
PPAP documents
Run-at-rate validation
Customer-specific requirements

These requirements should be confirmed before quotation because they affect engineering, testing, documentation, sampling, and production approval.

Die Casting vs. Alternative EV Manufacturing Routes

Process	Often Suitable For	Main Limitation to Review
High-pressure die casting	Complex integrated repeat-production parts	Tooling, porosity, machine capacity
Extrusion	Long constant-section rails and cooling structures	Limited cross-sectional variation
Stamped and welded sheet	Large enclosures and modular assemblies	Joining, sealing, distortion, part count
CNC machining	Prototypes and low-volume precision parts	Material waste and unit cost
Gravity or low-pressure casting	Thicker or different-integrity components	Cycle time and geometry limitations
Injection-molded plastic	Insulation, low mass, and complex non-structural parts	Temperature, shielding, stiffness, grounding
Composite construction	Lightweight multifunctional structures	Joining, repair, recycling, production rate

The correct solution may combine several processes. For example, an EV battery enclosure can use cast corners, extruded rails, stamped panels, machined sealing surfaces, molded insulation, and elastomer seals.

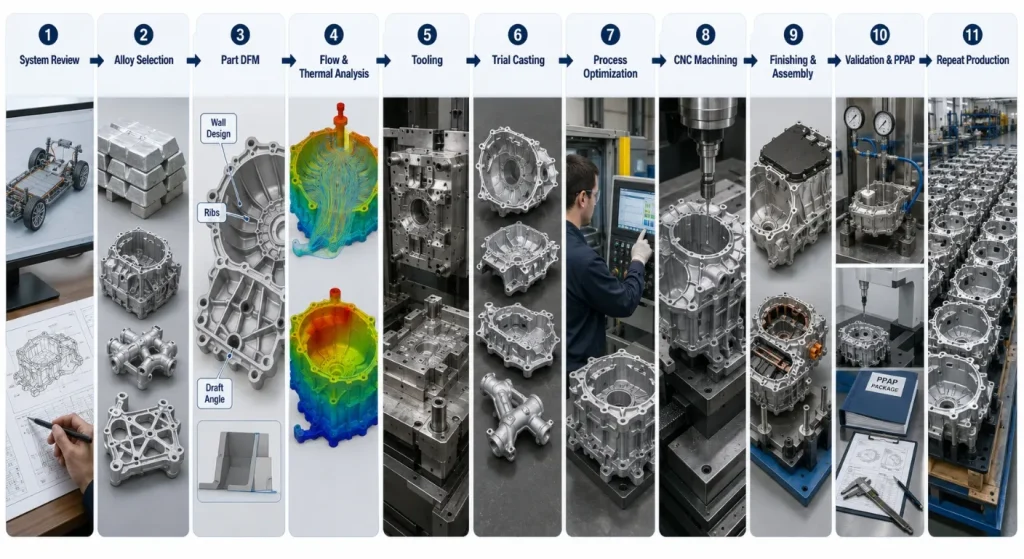

From Concept to EV Production

A controlled electric vehicle die casting project commonly follows:

System Review: Confirm vehicle subsystem, loads, thermal path, sealing, voltage, and service environment.
Alloy Selection: Define the casting alloy, material condition, and required properties.
Part DFM: Review walls, ribs, bosses, draft, machining, joining, and sealing.
Flow and Thermal Analysis: Evaluate filling, air entrapment, solidification, cooling, and distortion.
Tool Design and Manufacturing: Produce the mold, slides, cooling circuits, vacuum system, and trim tooling.
Trial Casting: Review filling, surface, dimensions, porosity-sensitive areas, and ejection.
Process Optimization: Adjust tooling and casting parameters.
CNC Machining: Complete sealing, bearing, connector, cooling, and mounting features.
Finishing and Assembly: Apply coatings, inserts, seals, and required subassembly operations.
Validation and PPAP: Complete dimensional, material, leak, coating, capability, and documentation requirements.
Repeat Production: Maintain control plans, traceability, maintenance, and change control.

Early programs can use low-volume aluminum die casting or CNC prototypes to validate geometry before committing to long-term production tooling.

What to Include in an EV Die Casting RFQ

Provide:

Controlled 2D drawing
3D CAD model
Vehicle subsystem and part function
Required alloy and standard
Annual and lifetime volumes
Critical load and thermal requirements
Sealing and leak-test requirements
Voltage, grounding, and insulation interfaces
Critical dimensions and GD&T
Cosmetic and corrosion zones
Cast and machined features
Joining and insert requirements
Surface treatment and masking
X-ray, CT, mechanical, and material tests
APQP and PPAP level
IMDS and traceability requirements
Packaging and cleanliness requirements
Production and delivery location

SunOn’s die cast parts supplier guide provides additional factors for reviewing tooling, machining, finishing, documentation, and repeat-production support.

Frequently Asked Questions About Electric Vehicle Die Casting

1. Which EV Components Are Commonly Die Cast?

Common examples include motor housings, inverter enclosures, onboard charger housings, battery-system structures, cooling manifolds, mounting brackets, and body castings. The process should be selected according to component size, quantity, structural, thermal, sealing, and validation requirements.

2. Which Aluminum Alloy Is Best for EV Die Casting?

There is no single EV alloy. General housings may use conventional die casting alloys, while structural, welded, heat-treated, pressure-tight, or high-ductility parts may require specialized aluminum grades and process controls.

3. Can Die Cast EV Battery Housings Be Leak-Tight?

They can be developed for defined leakage requirements, but the alloy, metal flow, vacuum, porosity, flange geometry, machining, gasket, fasteners, and test method must be planned together. Test medium, pressure, hold time, tested quantity, and leakage limit should be stated in the RFQ.

4. Does Vacuum Die Casting Eliminate Porosity?

No. Vacuum can reduce trapped gas and support higher-integrity casting, but shrinkage, oxide films, melt quality, gate design, shot control, and thermal balance still affect internal quality.

5. Is Gigacasting Suitable for Every EV Program?

No. Large integrated casting may reduce part count and joining, but it requires large equipment, specialized alloys, complex tooling, distortion control, extensive inspection, and a clear repair strategy. Smaller castings or mixed-material assemblies may be more practical for many projects.

6. What Information Is Needed for an EV Die Casting Quote?

Provide 2D and 3D files, part function, alloy, annual volume, critical loads, thermal requirements, sealing, machining, coatings, inspection, automotive documentation, traceability, packaging, and delivery needs. PPAP and customer-specific requirements should be confirmed before tooling quotation.

Conclusion

Reliable electric vehicle die casting begins with the function of the complete battery, motor, inverter, structural, or thermal-management system.

Alloy, wall design, metal flow, vacuum, thermal balance, machining, sealing, corrosion, electrical interfaces, inspection, documentation, and lifetime quantities must be evaluated together.

Die casting is most valuable when it integrates useful features and reduces production complexity without introducing unacceptable tooling, porosity, distortion, repair, or validation risk.

To request an EV die casting review, contact SunOn with your drawings, alloy, volumes, structural, thermal, sealing, machining, coating, testing, PPAP, and delivery requirements.

Electric Vehicle Die Casting: Parts, DFM, Quality, and RFQ Guide
