Family Mold Injection Molding

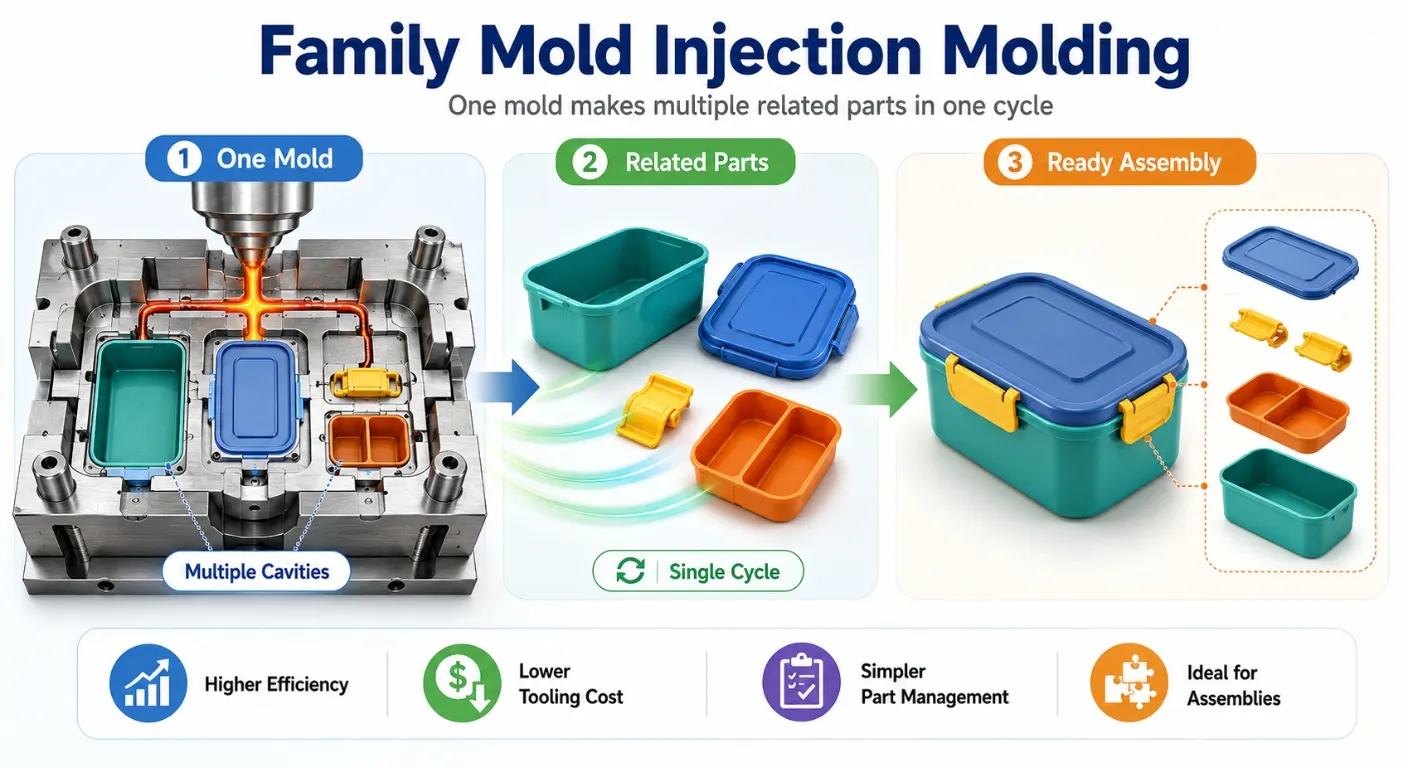

What is Family Mold Injection Molding?

Family mold injection molding is an injection molding method that uses one mold to produce multiple related parts in a single production cycle. By combining different cavities within one mold base, it helps manufacturers improve production efficiency, reduce tooling costs, and simplify part management.

Compared with using separate molds for each component, family molds provide a practical solution for product assemblies that require multiple plastic parts with similar materials, production volumes, or design requirements.

.

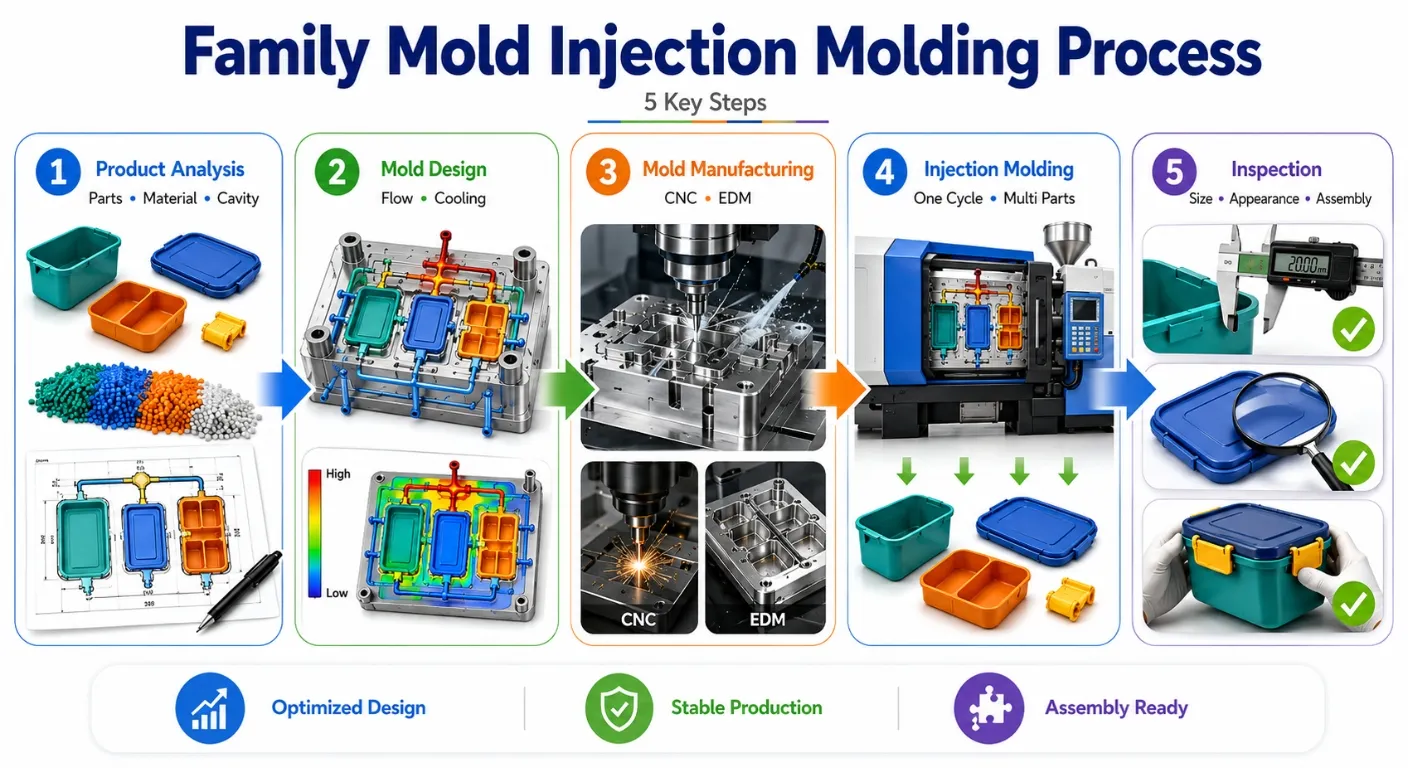

Family Mold Injection Molding Process

• Product Analysis & Mold Planning：We evaluate part structures, materials, production requirements, and cavity layouts to optimize family mold design.
• Mold Design & Flow Analysis：Next, we balance cavity sizes, filling paths, and cooling systems to achieve consistent molding performance across different parts.
• Mold Manufacturing：We use precision machining, CNC processing, and EDM technology to produce accurate cavities and mold components.
• Injection Molding Production：The mold produces multiple related parts in one cycle while maintaining stable process control.
• Inspection & Process Optimization：Finally, we verify dimensions, appearance, and assembly performance before volume production.

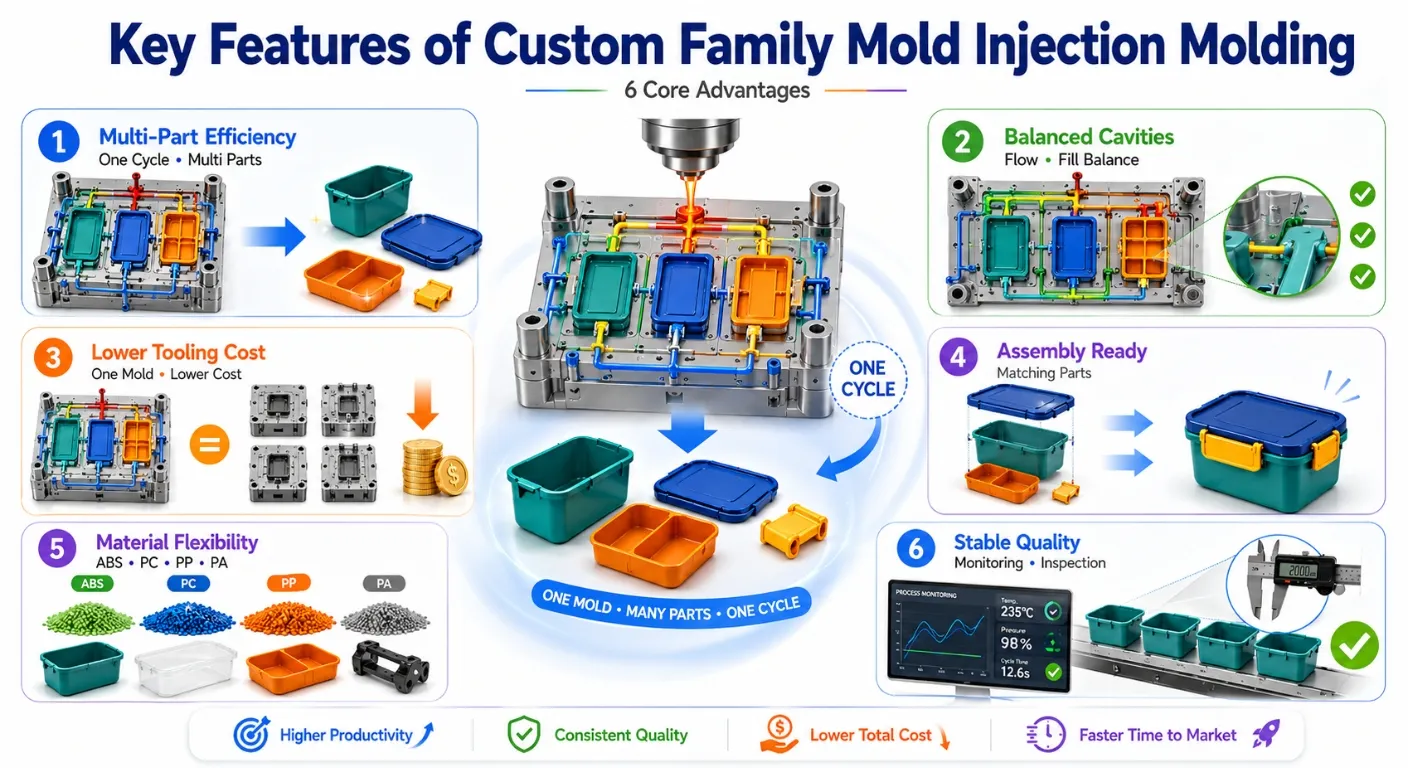

Key Features of Custom Family Mold Injection Molding

• Multi-Part Production Efficiency：Produces multiple related components within a single molding cycle, reducing production steps and handling requirements.
• Balanced Cavity Design：Optimizes cavity layout and filling balance to maintain consistent quality between different parts.
• Cost-Effective Tooling Solution：Reduces tooling investment compared with manufacturing separate molds for each individual component.
• Assembly-Level Manufacturing：Supports products containing multiple plastic components that require matching dimensions and coordinated production.
• Material & Design Flexibility：Works with ABS, PC, PP, PA, and other engineering plastics for different performance requirements.
• Stable Production Quality：Uses process monitoring and inspection methods to maintain consistent output across production batches.

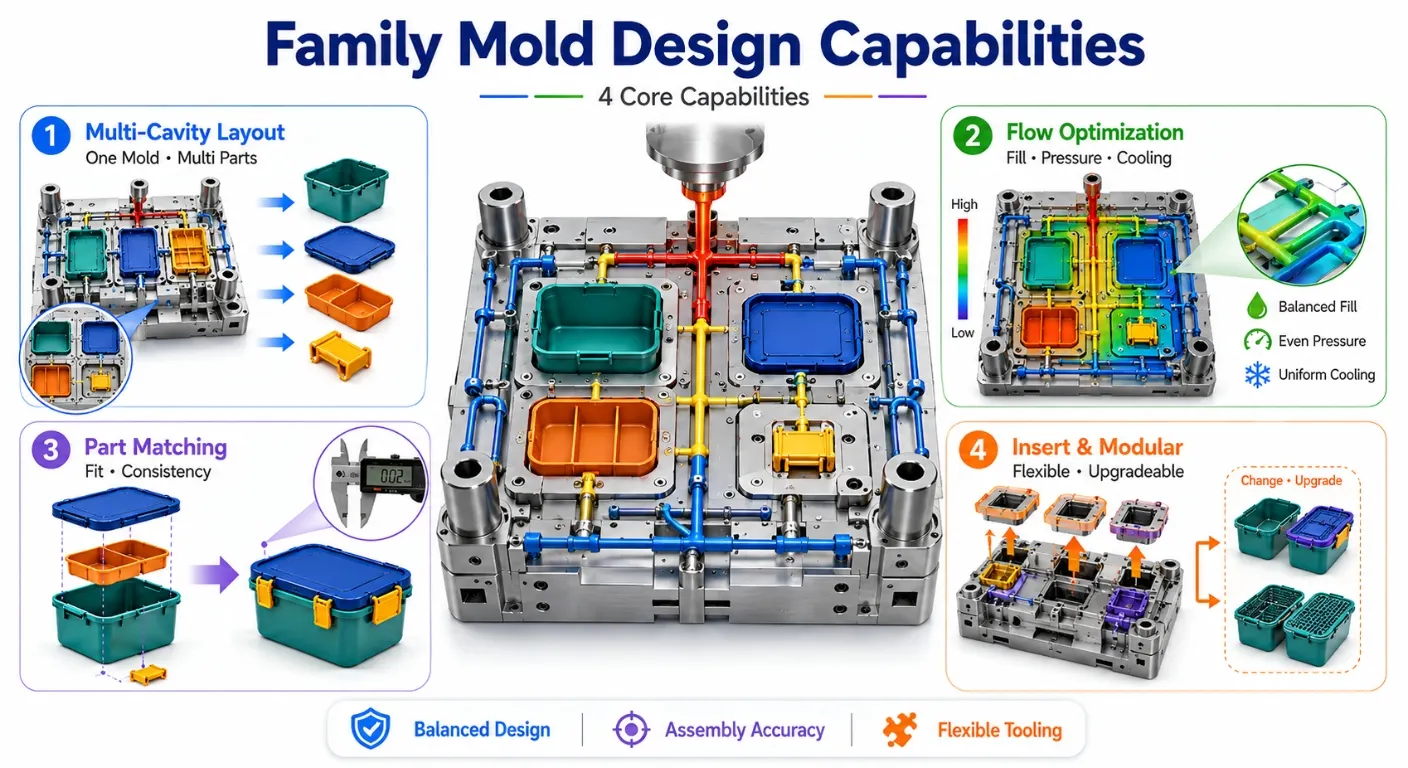

Family Mold Design Capabilities

Family mold performance depends heavily on cavity balance, part design, and production requirements. We optimize mold structures based on component relationships and manufacturing conditions.

• Multi-Cavity Layout Design：Creates different cavities within one mold base for producing multiple related parts.
• Mold Flow Optimization：Analyzes filling behavior, pressure distribution, and cooling performance to reduce molding defects.
• Part Matching Design：Ensures dimensional consistency between components used in the same assembly.
• Insert & Modular Design：Supports flexible mold structures for product variations and future modifications.

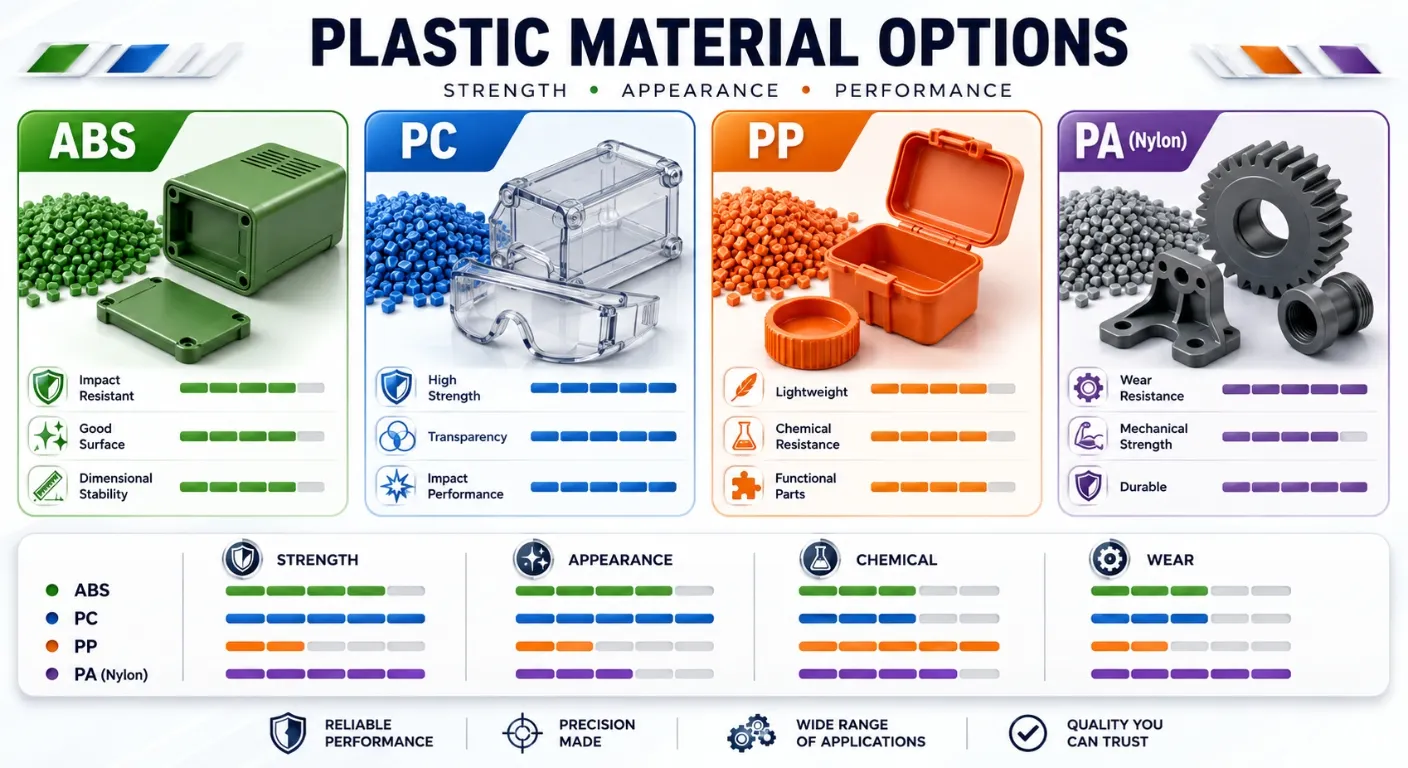

Plastic Material Options

Different engineering plastics provide different levels of strength, appearance, and functional performance.

• ABS：Provides good impact resistance, surface quality, and dimensional stability for consumer and industrial parts.
• PC：Offers high strength, transparency options, and excellent impact performance.
• PP：Provides lightweight performance and chemical resistance for functional components.
• PA (Nylon)：Provides wear resistance and mechanical strength for demanding applications.

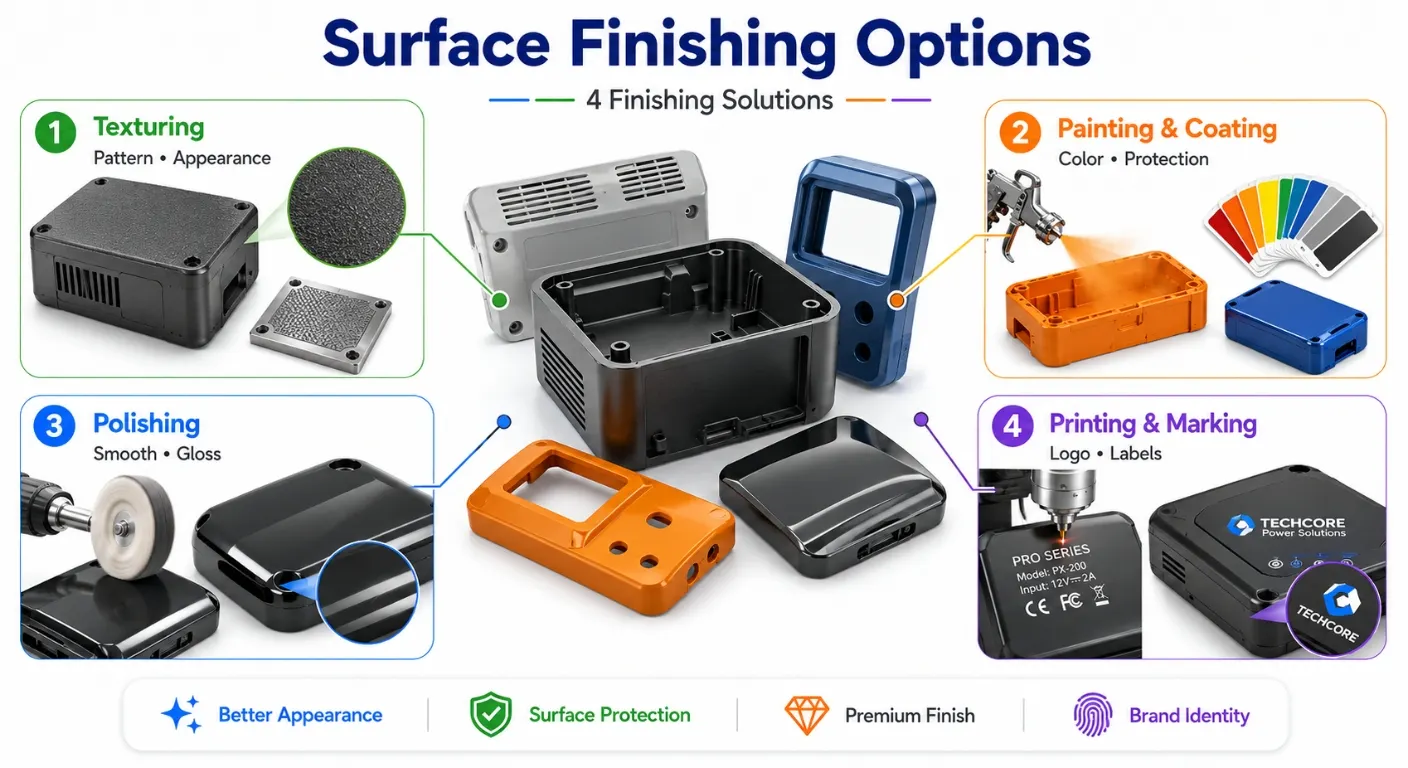

Surface Finishing Options

Family mold injection molded parts support various finishing solutions to improve appearance and product performance.

• Texturing：Creates customized surface patterns and improves visual appearance.
• Painting & Coating：Enhances color options and surface protection.
• Polishing：Provides smooth surfaces for decorative applications.
• Printing & Marking：Adds logos, labels, or functional markings.

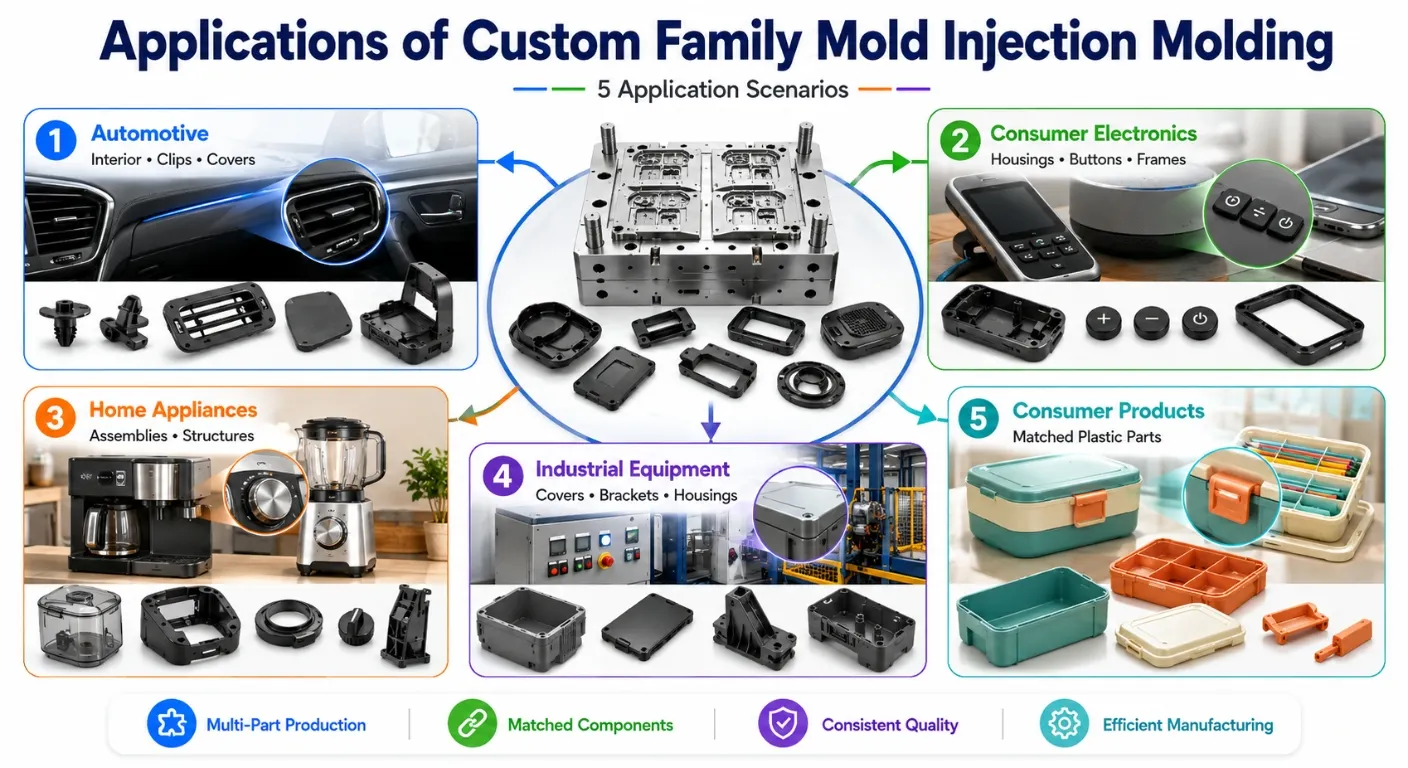

Applications of Custom Family Mold Injection Molding

• Automotive Components：Supports interior parts, clips, covers, and assembly components requiring consistent production.
• Consumer Electronics：Produces housings, buttons, frames, and related plastic components.
• Home Appliances：Provides multiple plastic parts for functional assemblies and product structures.
• Industrial Equipment：Supports covers, housings, brackets, and mechanical plastic components.
• Consumer Products：Suitable for products requiring multiple matched plastic components.

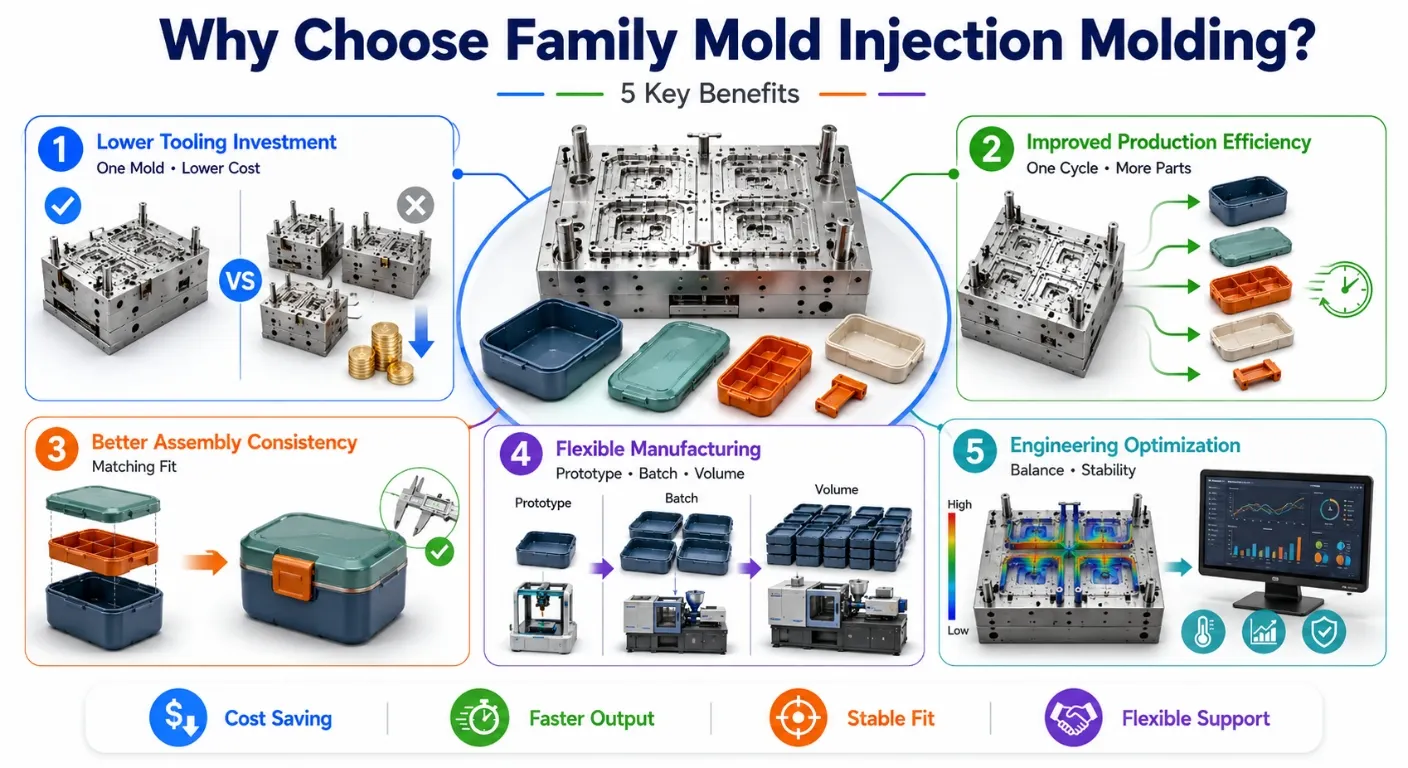

Why Choose Family Mold Injection Molding?

• Lower Tooling Investment：Combines multiple components into one mold to reduce separate tooling requirements.
• Improved Production Efficiency：Produces multiple parts simultaneously and reduces production handling steps.
• Better Assembly Consistency：Maintains matching dimensions between components produced from the same tooling system.
• Flexible Manufacturing Support：Suitable for prototypes, small batches, and volume production.
• Engineering Optimization：Provides design recommendations to improve mold balance, manufacturability, and production stability.
